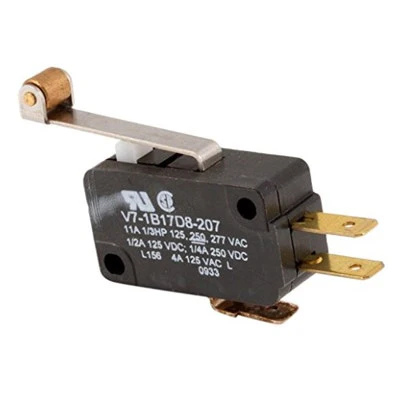

Ice-O-Matic 9101160-01 Limit Switch - SPDT (Single Pole Double Throw)

Ice-O-Matic 9101160-01 Limit Switch - SPDT (Single Pole Double Throw)

The Ice-O-Matic 9101160-01 is a critical replacement SPDT (Single Pole Double Throw) limit switch designed for precise control within the ice making cycle. This specialized microswitch acts as a safety and operational sensor, commonly used to detect the position of the ice curtain or the harvest plate. When the ice slab drops or the curtain opens, this switch sends a signal to the control board to terminate the harvest cycle or pause ice production. Built for the high-moisture, low-temperature environment of a commercial ice machine, the 9101160-01 ensures accurate timing and prevents mechanical damage to the evaporator and harvesting components.

  • Model Number: 9101160-01
  • Switch Type: SPDT (Single Pole Double Throw) - Provides versatile "Normally Open" or "Normally Closed" wiring options
  • Compatibility: Designed for various Ice-O-Matic ICE Series cubers and flake ice machines
  • Function: Monitors mechanical movement (Curtain Switch/Harvest Limit) to regulate the ice production cycle
  • Construction: High-durability plastic housing with corrosion-resistant electrical contacts
  • Reliability: Engineered for millions of cycles to ensure maximum operational uptime
  • Electrical: Snap-action mechanism for instantaneous signal transfer to the control module
  • Application: Essential repair part for machines that are "stuck" in harvest mode or failing to initiate a freeze cycle
Technician's Note: This limit switch is a common troubleshooting point for "Short Cycling" or machines that stop unexpectedly. If the metal actuator arm is bent or the internal spring has failed, the machine may think the ice curtain is open when it isn't. When installing the 9101160-01, ensure the wires are connected to the correct terminals (C, NO, or NC) as per your specific model's wiring diagram. A small amount of moisture-resistant contact cleaner can help maintain signal integrity in the damp environment of the head unit.
