Lancer 115V 1/15 HP High-Torque PSC Agitator Motor - 91-0165/03-SP

Lancer 115V 1/15 HP High-Torque PSC Agitator Motor - 91-0165/03-SP

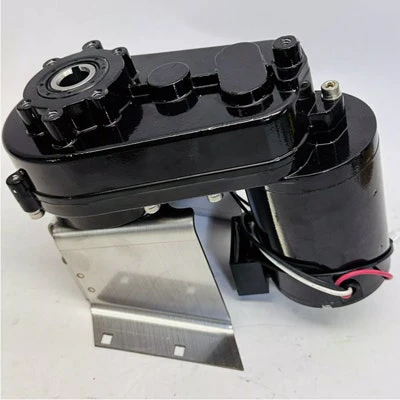

The Lancer Motor AC PSC CS 12.5 MFD BB 115/60 1A 1/15 HP is the electrical agitating drive unit responsible for maintaining the ice bank's water circulation. Using a high-torque Permanent Split Capacitor (PSC) design, it drives the propeller that moves water across the evaporator coils, ensuring the ice bank acts as an efficient cooling battery for the product lines.

Problem Solved: Restores circulation to prevent ice bank 'bridging'—where ice freezes solid around the product coils—ensuring even cooling across all beverage circuits. Fixes 'warm soda' calls where the compressor is running but the water bath is stagnant.

Symptoms of Failure: A loud humming noise from the unit top without rotation, warm drinks at the tap despite the compressor running, or the unit tripping the circuit breaker whenever the refrigeration cycle starts.

Technician’s Note: Verify the 12.5 MFD capacitor health before replacing the motor. A bound propeller caused by an ice bridge or debris is the #1 cause of winding burnout; ensure the water bath is clear of solid ice blocks before powering on. Use dielectric grease on the power leads.
Technical Specifications:
  • Voltage: 115V / 60Hz
  • Power/Current: 1/15 HP / 1A
  • Capacitor Req: 12.5 MFD
  • Manufacturer: Lancer
